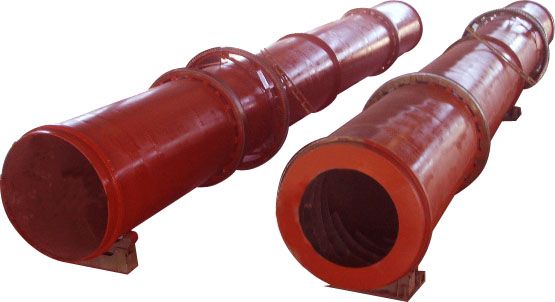

回轉烘干機（又叫回轉干燥機）是水泥廠(chǎng)最常用的烘干設備，也廣泛用于冶金、礦山、化工等行業(yè)?；剞D烘干機適于烘干各種物料，
烘干機設備操作簡(jiǎn)單可靠，防塵密封性能良好，維修方便，是理想的烘干設備.
|
規格
|
筒體
容積 |
筒體
轉速 |
筒
體 斜 度 |
電機
型號 |
電機
功率 |
減速機
型號 |
外型
尺寸 |
重量
|
| FD800X10000 | 3-5 | |||||||
| FD900X12000 | ||||||||
| FD1000X10000 | 7.85 | 6.73 | Y132M2-6 | 4 | JZQ400 | 10000X1876X2069 | 7.5 | |
| FD1200X6000 | 6.8 | 5.8 | Y132M2-6 | 5.5 | JZQ500 | 6000X2159X2475 | 7.97 | |
| FD1200X8000 | 9.1 | Y132M2-6 | 5.5 | JZQ500 | 8000X2159X2475 | 8.75 | ||
| FD1200X10000 | 11.31 | Y160M-6 | 7.5 | JZQ500 | 10000X2159X2475 | 9.25 | ||
| FD1200X12000 | 13.75 | Y160M-6 | 7.5 | JZQ500 | 12000X2159SX2475 | 10.3 | ||
| FD1500X8000 | 14.14 | 4.8 | Y160L-6 | 11 | JZQ650 | 8000X2655X2859 | 14.74 | |
| FD1500X10000 | Y160L-6 | 11 | JZQ650 | 10000X2655X2895 | 15.9 | |||
| FD1500X12000 | 21.2 | Y180L-6 | 15 | JZQ650 | 12000X2055X2895 | 17.13 | ||
| FD1500X14000 | 24.9 | Y180L-6 | 15 | JZQ650 | 14000X2655X2895 | 18.33 | ||
| FD1800X10000 | 25.45 | 3-5 | 5 | Y180L-6 | 15 | JZQ650 | 10000X3060X2980 | 17.93 |
| FD1800X12000 | 30.5 | Y200L-6 | 18.5 | JZQ650 | 12000X3060X2980 | 19.89 | ||
| FD1800X14000 | 35.1 | Y200L-6 | 18.5 | JZQ650 | 14000X3060X2980 | 20.85 | ||
| FD1800X18000 | 45.8 | Y200L-6 | 22 | JZQ650 | 18000X30609X980 | 22.3 | ||
| FD2200X12000 | 45.6 | 4.4 | Y200L-6 | 22 | JZQ750 | 12000X3620X3570 | 30.31 | |
| FD2200X14000 | 53.2 | Y200L-6 | 22 | JZQ750 | 14000X3620X3570 | 32.23 | ||
| FD2200X18000 | 68.4 | Y225M-6 | 30 | JZQ750 | 18000X3620X3570 | 34.15 | ||
| FD2200X20000 | 70 | Y225M-6 | 30 | JZQ750 | 20000X3620X3570 | 36.07 | ||
| FD2400X14000 | 63.3 | 3.85 | Y225M-6 | 30 | JZQ850 | 14000X3860X3760 | 39.9 |
